This magnetic coreless current sensor uses Hall technology and provides analog current sensing with a ±31 mT measurement range. It operates from a 3.1 V to 3.5 V supply and is designed for high accuracy with 1.3% accuracy, low sensitivity error over temperature, and stable offset behavior over temperature and lifetime. The device includes dual fast over-current detection, undervoltage and overvoltage diagnostics, and diagnosis mode support for safety-critical designs. It is qualified to AEC-Q100, supports ISO 26262 up to ASIL B, and is housed in a compact PG-VSON-6 package for low-loss integration.
Checking distributor stock and pricing after the page loads.
| Sensor technology | Hall-based magnetic coreless current sensor |
| Output interface | Analog |
| Measurement range | ±31mT |
| Accuracy | 1.3% |
| Supply voltage | 3.1 to 3.5V |
| Current rail | external (eCR) |
| Diagnostics | diagnosis mode, UV, OV, OCD 1, OCD 2 |
| Functional safety | ISO 26262-compliant ASIL B |
| Automotive qualification | AEC-Q100 |

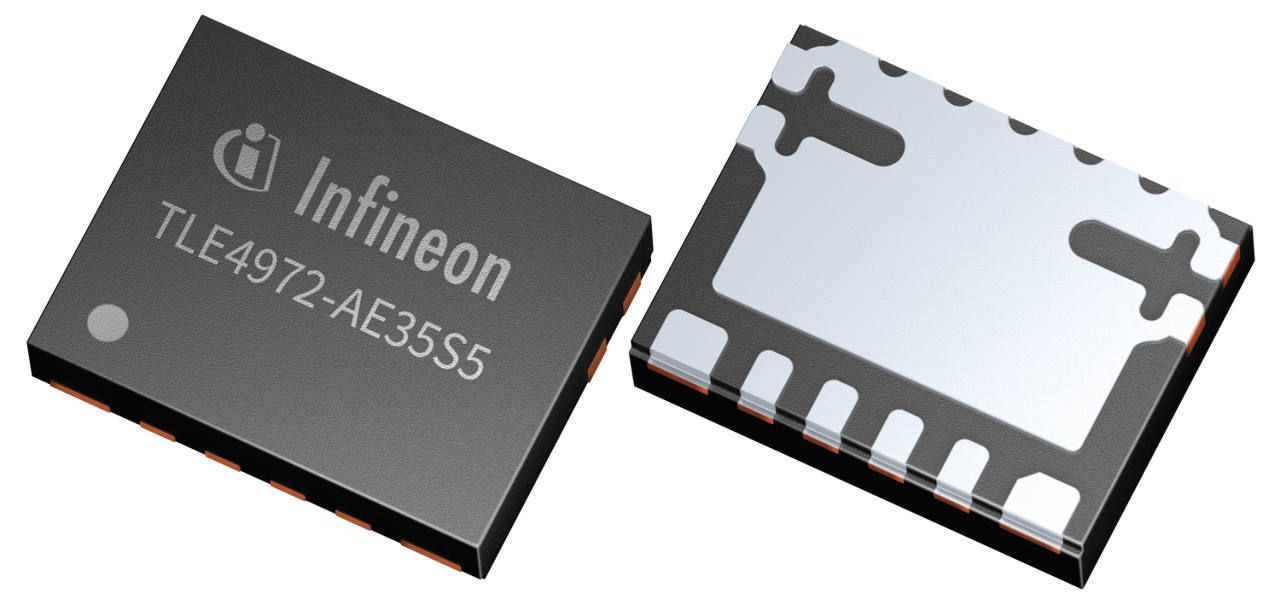

| Package | PG-VSON-6 |
| Moisture sensitivity level | 3 |
| Packing type | Tape & Reel |
| Packing size | 5000 |
| Lead-free | Yes |
| Planned availability | At least 2039 |
| RoHS | Compliant |
| Halogen Free | Yes |
