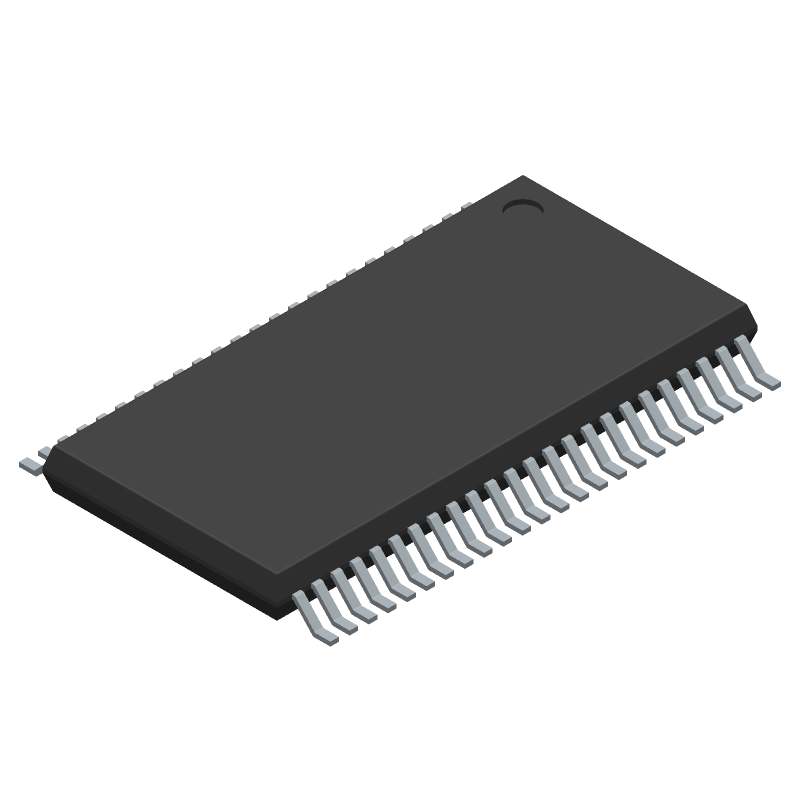

Industrial temperature grade 48-terminal, 8-bit bidirectional bus transceiver with common control. Features a 3.3V nominal supply voltage, operating between 2.7V and 3.6V. Delivers a propagation delay of 6.7ns, with 5.8ns at nominal supply. Housed in a 48-pin TSSOP package with true output polarity.
Quick Jump:
Technical Specifications
Integrated Device Technology 74ALVC164245PAG8 technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 48 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G48 |
| Width | 6.1 |
| Length | 12.5 |
| Pin Count | 48 |
| Number of Functions | 2 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Nom (Vsup) | 3.3 |
| Supply Voltage-Max (Vsup) | 3.6 |
| Supply Voltage-Min (Vsup) | 2.7 |
| Logic IC Type | BUS TRANSCEIVER |
| Family | ALVC/VCX/A |
| Propagation Delay (tpd) | 6.7 |
| Number of Bits | 8 |
| Max I(ol) | 0.024 |
| Prop. Delay@Nom-Sup | 5.8 |
| Load Capacitance | 50 |
| Output Polarity | TRUE |
| Number of Ports | 2 |
| Count Direction | BIDIRECTIONAL |
| Control Type | COMMON CONTROL |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Integrated Device Technology 74ALVC164245PAG8 Datasheet
Download the complete datasheet for Integrated Device Technology 74ALVC164245PAG8 to view detailed technical specifications.
No datasheet is available for this part.
