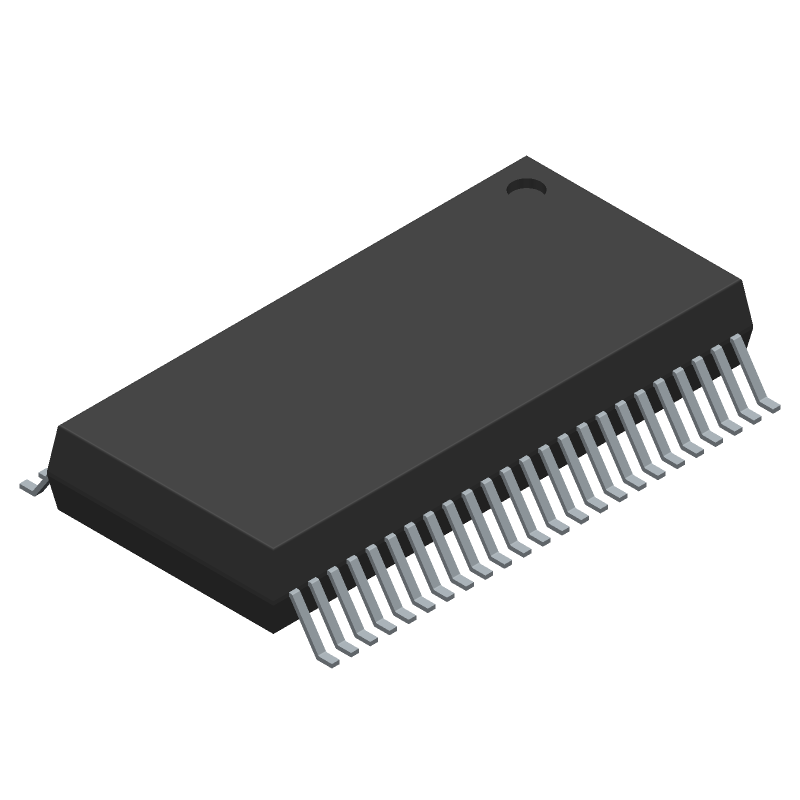

Industrial temperature grade 48-terminal dual bus driver IC, operating from a 2.7V to 3.6V supply with a nominal 3.3V. Features 8 bits, positive edge trigger, and true output polarity. Delivers a maximum propagation delay of 4.9ns at 150MHz nominal supply. Packaged in an R-PDSO-G48 (SSOP-48) with dimensions of 15.875mm length and 7.493mm width.
Quick Jump:
Technical Specifications
Integrated Device Technology 74LVCH16374APVG8 technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 48 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G48 |
| Width | 7.493 |
| Length | 15.875 |
| Pin Count | 48 |
| Number of Functions | 2 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Nom (Vsup) | 3.3 |
| Supply Voltage-Max (Vsup) | 3.6 |
| Supply Voltage-Min (Vsup) | 2.7 |
| Logic IC Type | BUS DRIVER |
| Family | LVC/LCX/Z |
| Propagation Delay (tpd) | 4.9 |
| Number of Bits | 8 |
| Max I(ol) | 0.024 |
| Prop. Delay@Nom-Sup | 4.5 |
| Load Capacitance | 50 |
| Output Polarity | TRUE |
| Number of Ports | 2 |
| Trigger Type | POSITIVE EDGE |
| Max Frequency@Nom-Sup | 150000000 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Integrated Device Technology 74LVCH16374APVG8 Datasheet
Download the complete datasheet for Integrated Device Technology 74LVCH16374APVG8 to view detailed technical specifications.
No datasheet is available for this part.
