The EPM7064STC10010 is a surface mount FPGA from Intel with a maximum operating frequency of 175.4MHz and a maximum supply voltage of 3.6V. It features 4 logic blocks, 68 I/Os, and a propagation delay of 10ns. The device operates within a temperature range of 0°C to 70°C and is packaged in a TQFP package quantity of 90. It is not radiation hardened and contains lead.
Frequency125MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7064STC10010 technical specifications.
General
| Package/Case | TQFP |
| Frequency | 125MHz |
| Lead Free | Contains Lead |
| Max Frequency | 175.4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 1250 |
| Number of I/Os | 68 |
| Number of Logic Blocks (LABs) | 4 |
| Number of Logic Elements/Cells | 4 |
| Number of Macro Cells | 64 |
| Number of Macrocells | 64 |
| Number of Programmable I/O | 68 |
| Package Quantity | 90 |
| Packaging | Tray |
| Propagation Delay | 10ns |
| Radiation Hardening | No |
| Series | MAX® 7000S |
| Speed Grade | 10 |
| Turn-On Delay Time | 10ns |
Compliance
| RoHS | Compliant |
Datasheet
Intel EPM7064STC10010 Datasheet
Download the complete datasheet for Intel EPM7064STC10010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

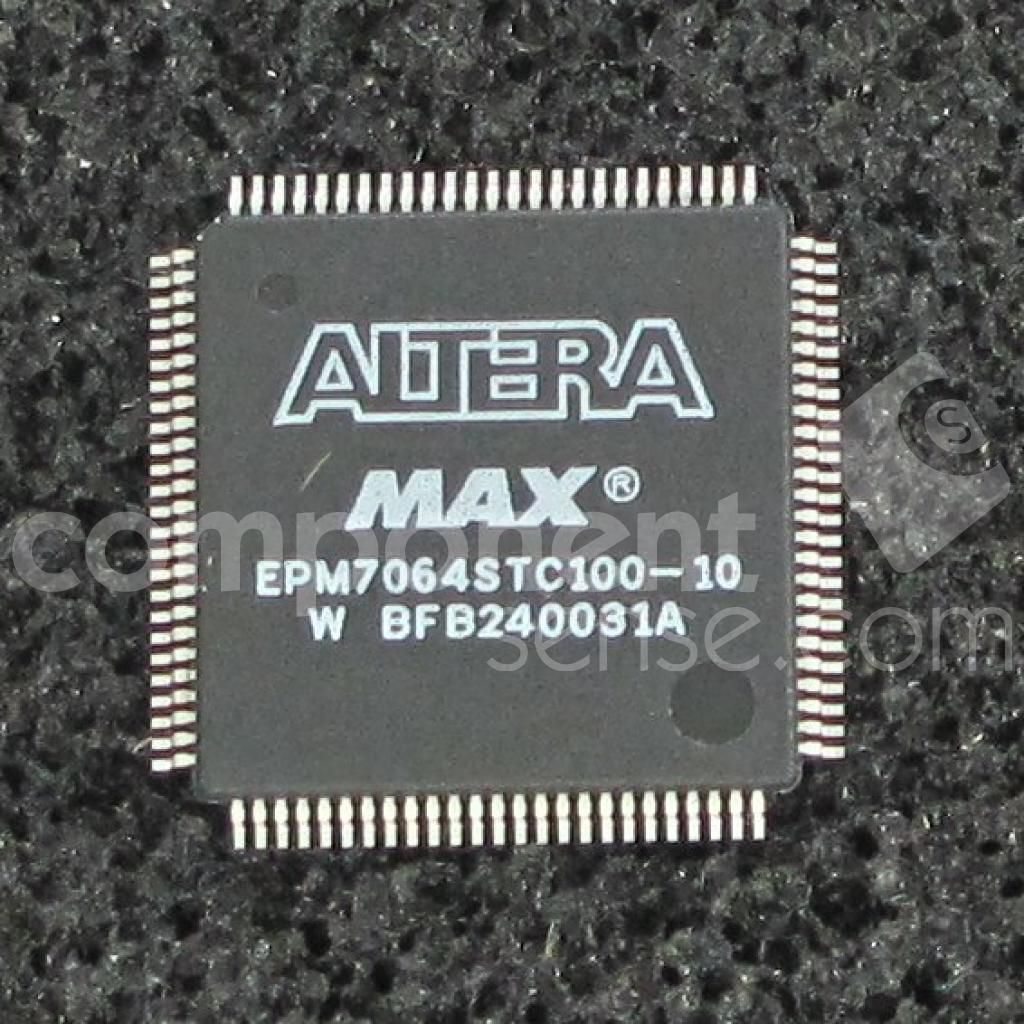

Product Images
