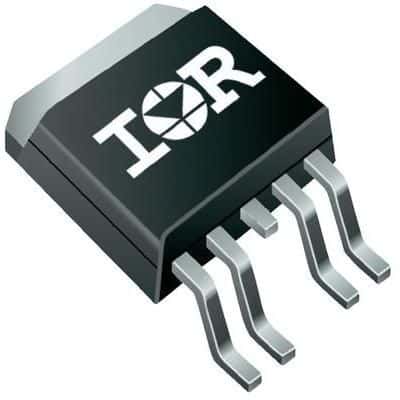

Automotive qualified high-side gate driver IC featuring 30mΩ Rds(on) and 40V capability. Delivers up to 19A output current with a maximum operating current of 3.9A. Includes over-temperature fault protection and an On/Off interface. Surface mountable in a DPAK package, operating from -40°C to 150°C.
PackageDPAK
Voltage36.3V
Current32A
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier AUIPS6021R technical specifications.
General
| Package/Case | DPAK |
| Current | 32A |
| Fall Time | 65us |
| Fault Protection | Over Temperature |
| Height | 2.39mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.9A |
| Max Power Dissipation | 2.5W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Current | 19A |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Supply Current | 2.2mA |
| Voltage | 36.3V |
| Width | 7.49mm |
Compliance
| RoHS | Compliant |
