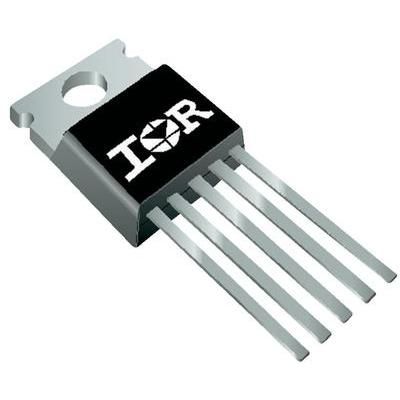

High-side power load switch with programmable current sense, featuring a 32V maximum supply voltage and 18A output current. This integrated circuit offers a 9mΩ on-state resistance and operates across a -40°C to 150°C temperature range. Designed for TO-220 packaging, it supports both surface mount and through-hole mounting. Key timing specifications include a 55µs turn-on delay and a 140µs turn-off delay.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the International Rectifier AUIR3314 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
International Rectifier AUIR3314 technical specifications.
| Package/Case | TO-220 |
| Current | 18A |
| Fall Time | 20us |
| Height | 16.51mm |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2W |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount, Through Hole |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 9mR |
| Output Current | 18A |
| Output Current per Channel | 5A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 140us |
| Turn-On Delay Time | 55us |
| Voltage | 37V |
| Width | 4.83mm |
| RoHS | Compliant |
