International Rectifier
IR2110S
Half Bridge Based MOSFET Driver, 2.5A, CMOS, PDSO16, MS-013AA, SOIC-16
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier IR2110S technical specifications.
General
| Package/Case | SOIC |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.25W |
| Max Supply Current | 340uA |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 10V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Turn-On Delay Time | 10ns |
| Type | Integrated Circuit (IC) |
Compliance
| RoHS | Not Compliant |
Datasheet
International Rectifier IR2110S Datasheet
Download the complete datasheet for International Rectifier IR2110S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

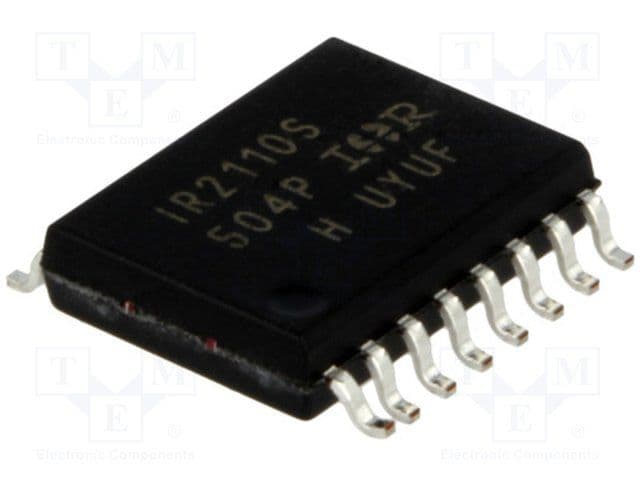

Product Images
