N-Channel Power MOSFET, TO-220AB package, featuring a 20V drain-source breakdown voltage and a maximum continuous drain current of 67A. This silicon, metal-oxide semiconductor FET offers a low drain-source on-resistance of 7.9mΩ at a nominal gate-source voltage of 2.1V. With a maximum power dissipation of 57W and an operating temperature range of -55°C to 175°C, it is suitable for through-hole mounting. The component is lead-free and RoHS compliant, with typical switching times including an 8.9ns turn-on delay and a 4.2ns fall time.
PackageTO-220AB
Current Rating67A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
International Rectifier IRF3704ZPBF technical specifications.
General
Package/Case
TO-220AB
Continuous Drain Current (ID)
67A
Current Rating
67A
Drain to Source Breakdown Voltage
20V
Drain to Source Resistance
11.1mR
Drain to Source Voltage (Vdss)
20V
Drain-source On Resistance-Max
7.9MR
Dual Supply Voltage
20V
Fall Time
4.2ns
Gate to Source Voltage (Vgs)
20V
Height
8.77mm
Input Capacitance
1.22nF
Lead Free
Lead Free
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
57W
Mount
Through Hole
Nominal Vgs
2.1V
Number of Elements
1
Package Quantity
50
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
57W
Radiation Hardening
No
Rds On Max
7.9mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HEXFET®
Termination
Through Hole
Threshold Voltage
2.1V
Turn-Off Delay Time
11ns
Turn-On Delay Time
8.9ns
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRF3704ZPBF Datasheet
Download the complete datasheet for International Rectifier IRF3704ZPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

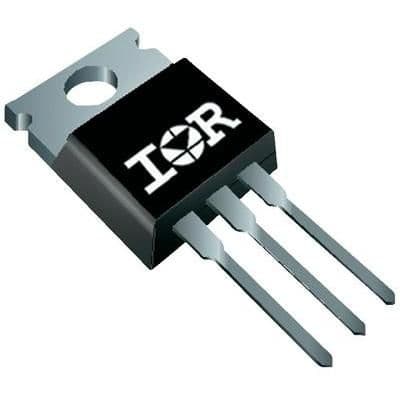

Product Images
