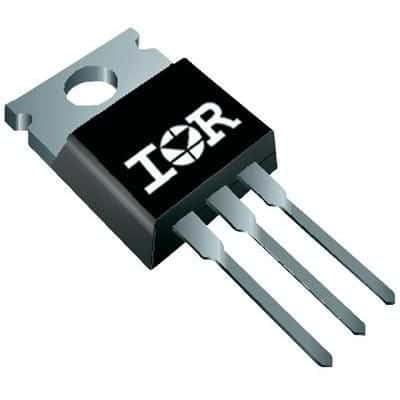

N-Channel MOSFET, 100V Drain-Source Voltage, 36A Continuous Drain Current, and 26.5mΩ Max On-State Resistance. This silicon Metal-Oxide Semiconductor FET features a TO-220AB package for through-hole mounting, a maximum power dissipation of 92W, and operates from -55°C to 175°C. It includes a 15ns turn-on delay and 43ns turn-off delay, with a nominal gate-source voltage of 4V and a maximum gate-source voltage of 20V. This RoHS compliant component offers 1.77nF input capacitance.
Sign in to ask questions about the International Rectifier IRF540ZPBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
International Rectifier IRF540ZPBF technical specifications.
| Package/Case | TO-220AB |
| Continuous Drain Current (ID) | 36A |
| Current Rating | 36A |
| Drain to Source Voltage (Vdss) | 100V |
| Drain-source On Resistance-Max | 26.5MR |
| Dual Supply Voltage | 100V |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 8.77mm |
| Input Capacitance | 1.77nF |
| Lead Free | Lead Free |
| Length | 10.54mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 92W |
| Mount | Through Hole |
| Nominal Vgs | 4V |
| On-State Resistance | 26.5R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Turn-Off Delay Time | 43ns |
| Turn-On Delay Time | 15ns |
| DC Rated Voltage | 100V |
| Width | 4.69mm |
| RoHS | Compliant |
Download the complete datasheet for International Rectifier IRF540ZPBF to view detailed technical specifications.
