Dual N-Channel and P-Channel MOSFET for power switching applications. Features 55V drain-source voltage, 4.7A continuous drain current, and 50mΩ maximum drain-source on-resistance. Operates with a nominal gate-source voltage of 1V and a maximum of 20V. Surface-mount SOIC package with a maximum power dissipation of 2W. Includes fast switching characteristics with turn-on delay of 8.3ns and fall time of 13ns.
PackageSOIC
Current Rating4.7A
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
International Rectifier IRF7343PBF technical specifications.
General
Package/Case
SOIC
Continuous Drain Current (ID)
4.7A
Current Rating
4.7A
Drain to Source Voltage (Vdss)
55V
Drain-source On Resistance-Max
50MR
Fall Time
13ns
FET Type
N and P-Channel
Gate to Source Voltage (Vgs)
20V
Height
1.5mm
Input Capacitance
740pF
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Mount
Surface Mount
Nominal Vgs
1V
Number of Elements
2
Package Quantity
95
Packaging
Rail/Tube
Power Dissipation
2W
Rds On Max
50mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
6.3mm
Series
HEXFET®
Turn-Off Delay Time
43ns
Turn-On Delay Time
8.3ns
Width
4mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRF7343PBF Datasheet
Download the complete datasheet for International Rectifier IRF7343PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

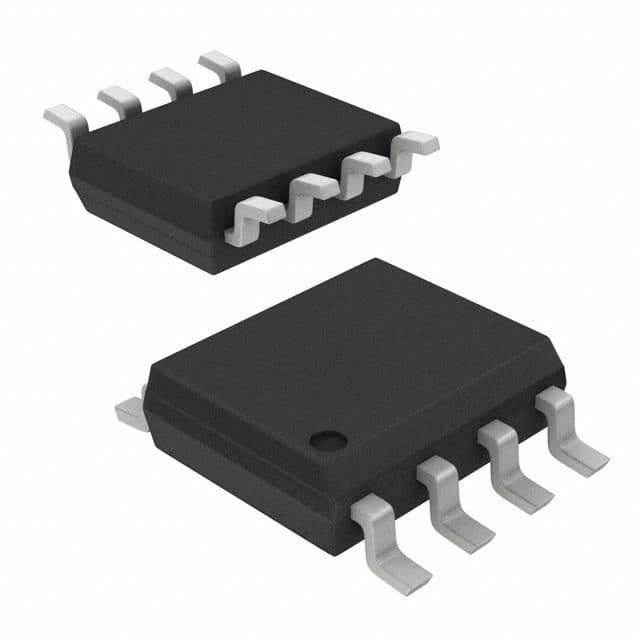

Product Images
