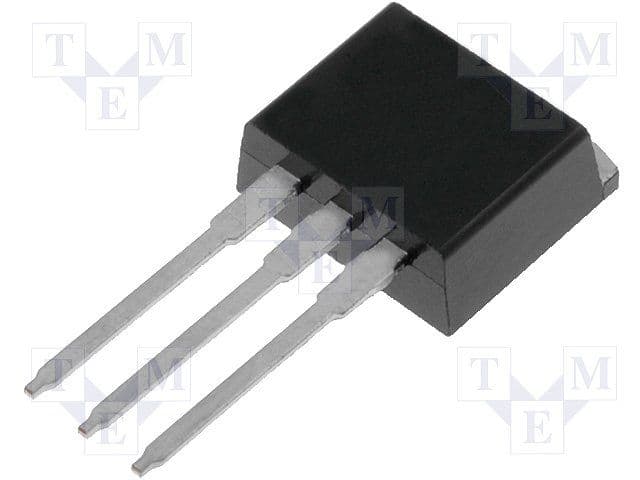

IRF9540NL

Power Field-Effect Transistor, 23A I(D), 100V, 0.117ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, TO-262, 3 PIN

PackageTO-262-3

Current Rating-23A

MountingThrough Hole

Power140W

Quick Jump:

International Rectifier IRF9540NL technical specifications.

Package/Case	TO-262-3
Continuous Drain Current (ID)	23A
Current Rating	-23A
Drain to Source Breakdown Voltage	-100V
Drain to Source Voltage (Vdss)	100V
Input Capacitance	1.3nF
Lead Free	Contains Lead
Max Power Dissipation	3.8W
Mount	Through Hole
Package Quantity	50
Packaging	Rail/Tube
Power Dissipation	140W
Rds On Max	117mR
RoHS Compliant	No
DC Rated Voltage	-100V
