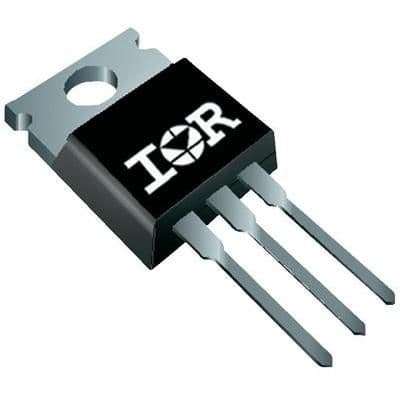

The IRFB4019PBF is a lead free TO-220AB packaged MOSFET with a maximum operating temperature of 175°C and a minimum operating temperature of -55°C. It has a continuous drain current of 17A and a drain to source voltage of 150V. The device has a maximum power dissipation of 80W and a nominal Vgs of 4.9V. It is RoHS compliant and has an input capacitance of 800pF.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the International Rectifier IRFB4019PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220AB |
| Continuous Drain Current (ID) | 17A |
| Drain to Source Voltage (Vdss) | 150V |
| Drain-source On Resistance-Max | 95MR |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 9.02mm |
| Input Capacitance | 800pF |
| Lead Free | Lead Free |
| Length | 10.66mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 80W |
| Mount | Through Hole |
| Nominal Vgs | 4.9V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 4.9V |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 7ns |
| Width | 4.82mm |
| RoHS | Compliant |
