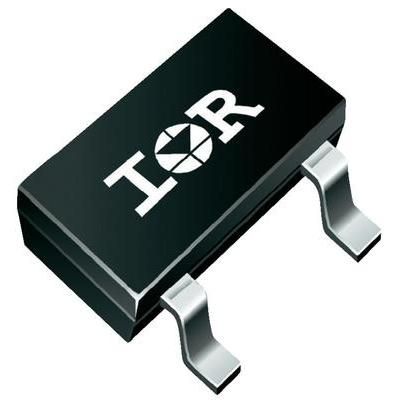

N-Channel Power MOSFET, 60V Drain-Source Voltage, 2.7A Continuous Drain Current, and 0.092 Ohm maximum Drain-Source On Resistance. Features include a 2.5V nominal Gate-Source Voltage, 1.25W maximum power dissipation, and a compact SOT-23 surface mount package measuring 3.04mm x 1.4mm x 1.02mm. Operates across a temperature range of -55°C to 150°C with 290pF input capacitance and fast switching times of 5.4ns turn-on and 6.8ns turn-off. This component is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the International Rectifier IRLML0060TRPBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
International Rectifier IRLML0060TRPBF technical specifications.
| Package/Case | SOT-23 |
| Continuous Drain Current (ID) | 2.7A |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 92MR |
| Gate to Source Voltage (Vgs) | 16V |
| Height | 1.02mm |
| Input Capacitance | 290pF |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.25W |
| Mount | Surface Mount |
| Nominal Vgs | 2.5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.5V |
| Turn-Off Delay Time | 6.8ns |
| Turn-On Delay Time | 5.4ns |
| Width | 1.4mm |
| RoHS | Compliant |
