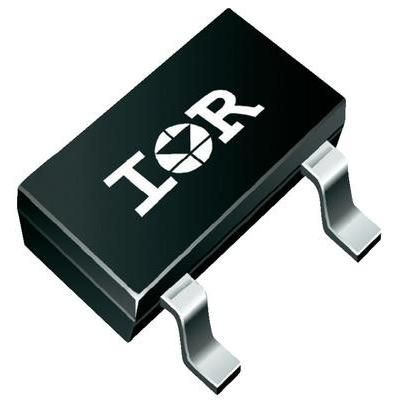

The IRLML2246TRPBF is a surface-mount N-channel MOSFET with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum power dissipation of 1.3W and is packaged in a SOT-23 case. The device is lead-free and RoHS compliant, with a nominal Vgs of -1.1V and a threshold voltage of -1.1V. The MOSFET has an input capacitance of 220pF and a drain-source on resistance of 236MR, with a fall time of 16ns and a turn-off delay time of 26ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the International Rectifier IRLML2246TRPBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
International Rectifier IRLML2246TRPBF technical specifications.
| Package/Case | SOT-23 |
| Continuous Drain Current (ID) | -2.6A |
| Drain to Source Voltage (Vdss) | -20V |
| Drain-source On Resistance-Max | 236MR |
| Fall Time | 16ns |
| Gate to Source Voltage (Vgs) | 12V |
| Height | 1.02mm |
| Input Capacitance | 220pF |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.3W |
| Mount | Surface Mount |
| Nominal Vgs | -1.1V |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | -1.1V |
| Turn-Off Delay Time | 26ns |
| Turn-On Delay Time | 5.3ns |
| Width | 1.4mm |
| RoHS | Compliant |
