IRLR3110ZPBF

Name: IRLR3110ZPBF International Rectifier
Brand: International Rectifier
SKU: IRLR3110ZPBF
Price: 8.8 USD
Availability: InStock

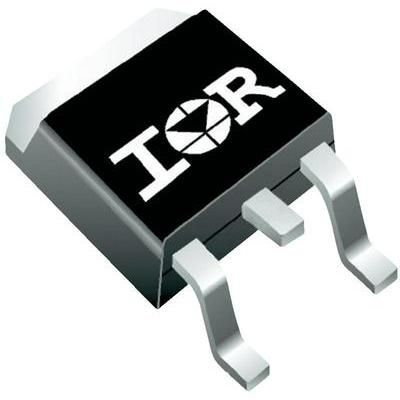

100V 63A DPAK Surface Mount N-Channel MOSFET

The IRLR3110ZPBF is a surface mount N-channel MOSFET from International Rectifier with a maximum operating temperature of 175°C and a minimum operating temperature of -55°C. It has a maximum power dissipation of 140W and a drain to source voltage of 100V. The device is packaged in a DPAK package with a lead-free termination and is RoHS compliant. The IRLR3110ZPBF has a nominal Vgs of 2.5V and a drain-source on resistance-max of 14MR. It can handle a continuous drain current of 63A and has a turn-off delay time of 33ns and a turn-on delay time of 24ns.

PackageDPAK

MountingSurface Mount

Power140W

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	4+	10+	Stock	Action
Quest	-	4	8.8	8	26 In Stock	View

Chat with Datasheet

Technical Specifications

International Rectifier IRLR3110ZPBF technical specifications.

General

Package/Case	DPAK
Continuous Drain Current (ID)	63A
Drain to Source Voltage (Vdss)	100V
Drain-source On Resistance-Max	14MR
Dual Supply Voltage	100V
Gate to Source Voltage (Vgs)	16V
Height	2.39mm
Input Capacitance	3.98nF
Lead Free	Lead Free
Length	6.73mm
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Max Power Dissipation	140W
Mount	Surface Mount
Nominal Vgs	2.5V
Number of Elements	1
Power Dissipation	140W
Reach SVHC Compliant	No
RoHS Compliant	Yes
Termination	SMD/SMT
Turn-Off Delay Time	33ns
Turn-On Delay Time	24ns
Width	6.22mm
