N-Channel Power MOSFET, DPAK package, offering a 20V drain-source breakdown voltage and 37A continuous drain current. Features a low 15mΩ drain-source on-resistance and 560pF input capacitance. Operates with a 2.1V threshold voltage and includes fast switching times with a 4.3ns fall time and 5.4ns turn-on delay. Maximum power dissipation is 35W, with an operating temperature range of -55°C to 175°C. This surface-mount component is RoHS compliant and lead-free.
PackageDPAK
Current Rating37A
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
International Rectifier IRLR3714ZPBF technical specifications.
General
| Package/Case | DPAK |
| Continuous Drain Current (ID) | 37A |
| Current Rating | 37A |
| Drain to Source Breakdown Voltage | 20V |
| Drain to Source Resistance | 25mR |
| Drain to Source Voltage (Vdss) | 20V |
| Fall Time | 4.3ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 2.39mm |
| Input Capacitance | 560pF |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 35W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 35W |
| Radiation Hardening | No |
| Rds On Max | 15mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HEXFET® |
| Threshold Voltage | 2.1V |
| Turn-Off Delay Time | 9.2ns |
| Turn-On Delay Time | 5.4ns |
| DC Rated Voltage | 20V |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier IRLR3714ZPBF Datasheet
Download the complete datasheet for International Rectifier IRLR3714ZPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

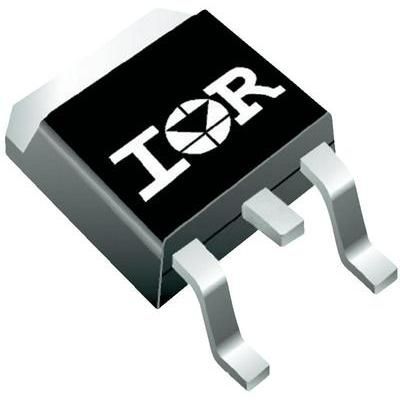

Product Images
