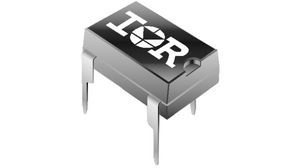

Solid State Relay (SSR) with DC input and AC/DC output. Features a 550mA output current capability at up to 100V DC output voltage. Operates with a 25mA DC input current and offers 4kV isolation voltage. Packaged in a 4-pin PDIP with through-hole mounting and PC pin termination. Includes a 1.5 Ohm on-state resistance and operates within a -40°C to 85°C temperature range.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
International Rectifier PVD1352N technical specifications.
General
Package/Case
PDIP
Height
3.93mm
Input Current
25mA
Input Type
DC
Isolation Voltage
4kV
Lead Free
Contains Lead
Length
9.39mm
Load Current
550mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
100V
Mount
Through Hole
On-State Resistance
1.5R
Output Current
550mA
Output Voltage
100V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
No
Series
PVD, HEXFET®
Termination
PC Pin
Throw Configuration
SPST
Width
6.47mm
Compliance
RoHS
Not CompliantNo
