General purpose operational amplifier featuring a 15MHz bandwidth and 15MHz gain bandwidth product. This single-channel IC offers a 30V/µs slew rate and 100dB voltage gain, with a 45mA output current per channel. Operating from ±2.5V to ±8V dual supply or 5V to 18V single supply, it boasts a 5pA input bias current and 2mV input offset voltage. Housed in an 8-pin PDIP package for through-hole mounting, it operates across a -55°C to 125°C temperature range.
PackagePDIP
Voltage18V
MountingThrough Hole
Quick Jump:
Technical Specifications
Intersil CA3130AE technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 15MHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 90dB |
| Contact Plating | Tin, Lead |
| Gain Bandwidth Product | 15MHz |
| Input Bias Current | 5pA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Nominal Supply Current | 2mA |
| Number of Amplifiers | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 10mA |
| Output Current per Channel | 45mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 73.97dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Slew Rate | 30V/µs |
| Technology | BICMOS |
| Voltage | 18V |
| Voltage Gain | 100dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Intersil CA3130AE Datasheet
Download the complete datasheet for Intersil CA3130AE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

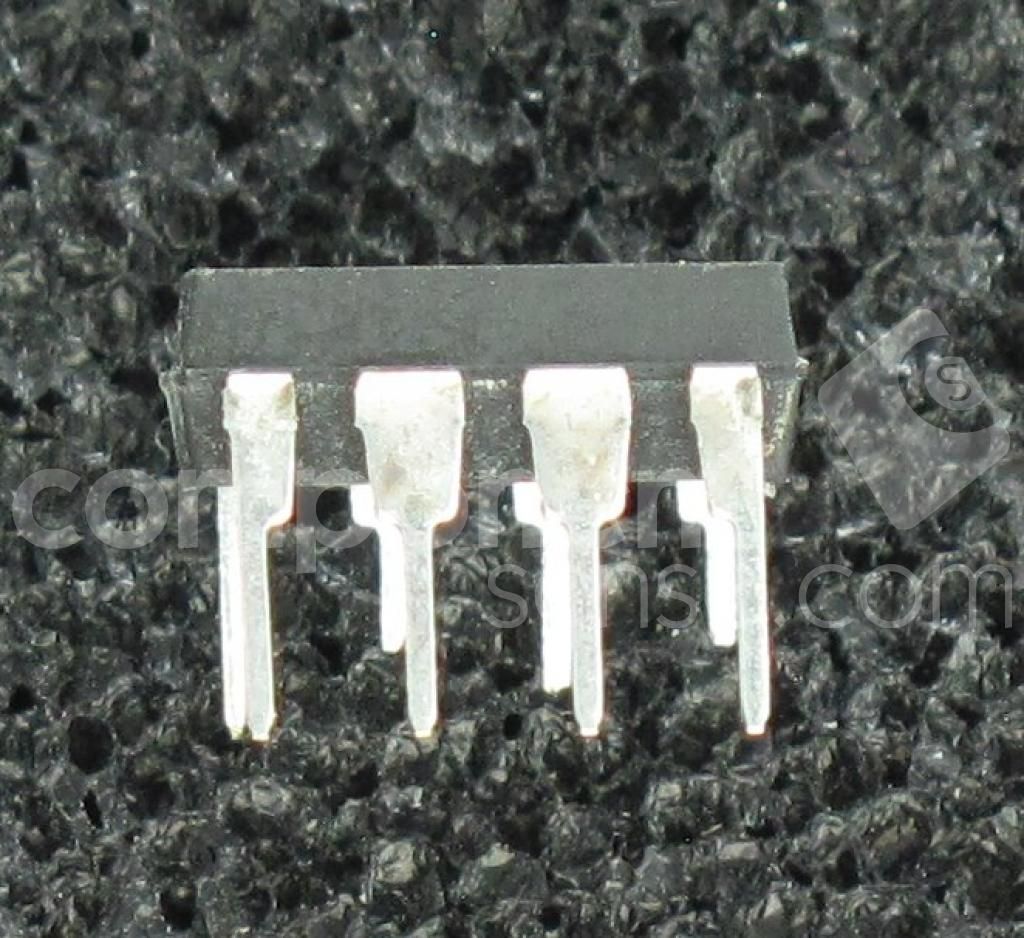

Product Images
