Frequency12MHz
PackagePDIP
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Intersil CP82C54-12 technical specifications.
General
Package/Case
PDIP
Contact Plating
Tin, Lead
Frequency
12MHz
High Level Output Current
-2.5mA
Lead Free
Contains Lead
Low Level Output Current
2.5mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole, Surface Mount
Number of Timers/Counters
1
Operating Frequency
12.5 MHz
Operating Supply Current
10mA
Operating Supply Voltage
5V
Package Quantity
15
Packaging
Rail/Tube
Propagation Delay
100ns
RoHS Compliant
No
Series
CP82C54
Technology
CMOS
Compliance
RoHS
Not Compliant
Datasheet
Intersil CP82C54-12 Datasheet
Download the complete datasheet for Intersil CP82C54-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

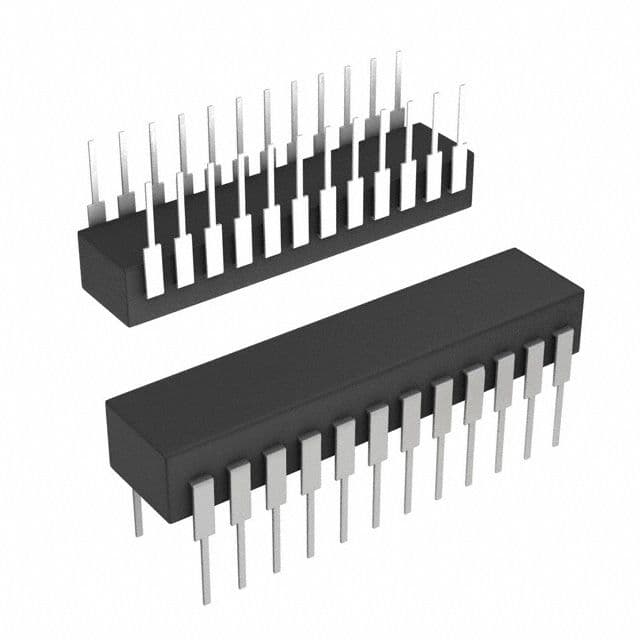

Product Images
