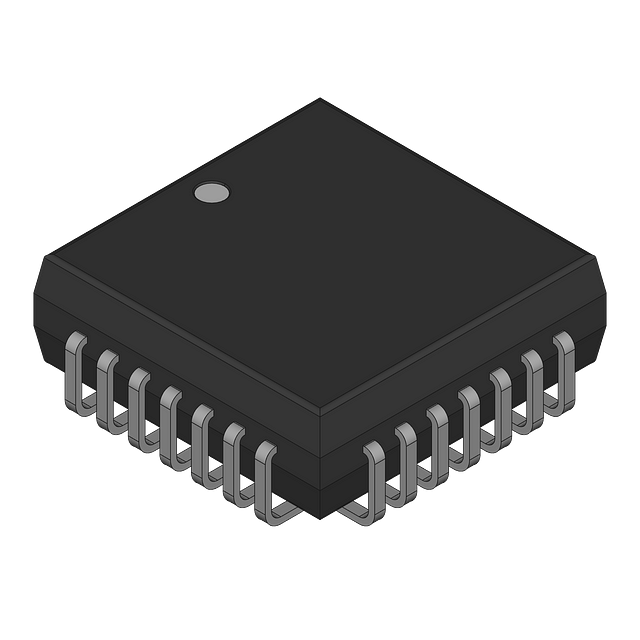

The CS82C5496 is an 8MHz real time clock IC with one timer and a maximum operating temperature of 70°C. It operates within a supply voltage range of 4.5V to 5.5V and consumes 10mA of operating supply current. The device is available in a PLCC package and is not RoHS compliant. It has a propagation delay of 150ns and a high level output current of -2.5mA and a low level output current of 2.5mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intersil CS82C5496 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PLCC |
| Contact Plating | Tin, Lead |
| Frequency | 8MHz |
| High Level Output Current | -2.5mA |
| Lead Free | Contains Lead |
| Low Level Output Current | 2.5mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Timers/Counters | 1 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Propagation Delay | 150ns |
| RoHS Compliant | No |
| Series | 82C54 |
| RoHS | Not Compliant |
