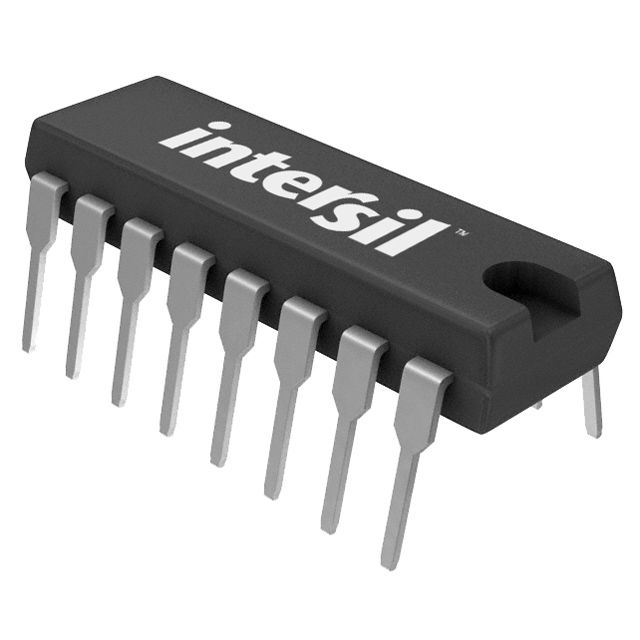

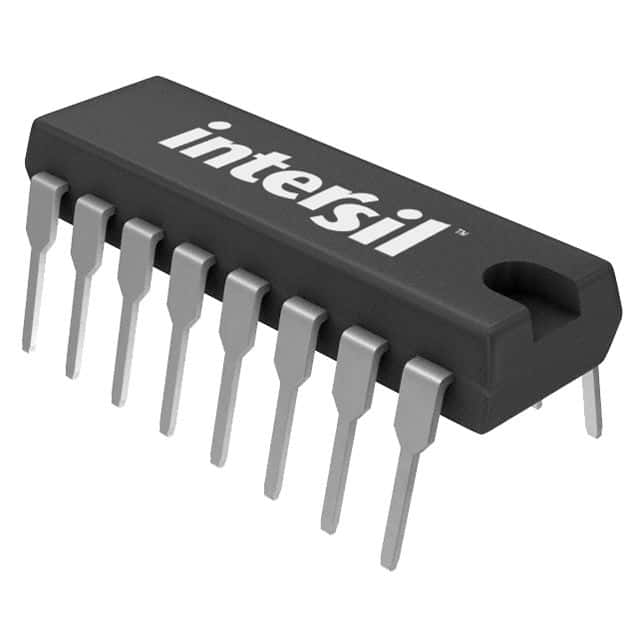

Quad channel analogue switch, SPST, featuring 4 channels and 4 inputs/outputs. Offers an on-state resistance of 175 ohms and operates with a dual supply voltage up to 15V, with a maximum dual supply voltage of 22V. This through-hole mounted component is housed in a PDIP package with 16 pins, suitable for a 0°C to 70°C operating temperature range. RoHS compliant with a typical supply current of 100nA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intersil DG211CJZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Intersil DG211CJZ technical specifications.
| Package/Case | PDIP |
| Dual Supply Voltage | 15V |
| Height | 4.95mm |
| Length | 19.68mm |
| Max Dual Supply Voltage | 22V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 10uA |
| Max Supply Voltage | 15V |
| Min Supply Voltage | -15V |
| Mount | Through Hole |
| Number of Channels | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| On-State Resistance | 175R |
| Operating Supply Current | 100nA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 100nA |
| Supply Type | Dual |
| Throw Configuration | SPST |
| Width | 7.11mm |
| RoHS | Compliant |
