Quad SPST analog switch IC featuring 4 channels and 4 bits. Offers 50 Ohm drain-to-source resistance and 160 Ohm on-state resistance. Supports dual supply voltages from 5V to 18V, with a maximum dual supply voltage of 20V. Operates with a single or dual supply type, up to a maximum supply voltage of 40V. Through-hole mountable in a PDIP package, this RoHS compliant component has a maximum operating temperature of 85°C.
PackagePDIP
Current15uA
MountingThrough Hole
Quick Jump:
Technical Specifications

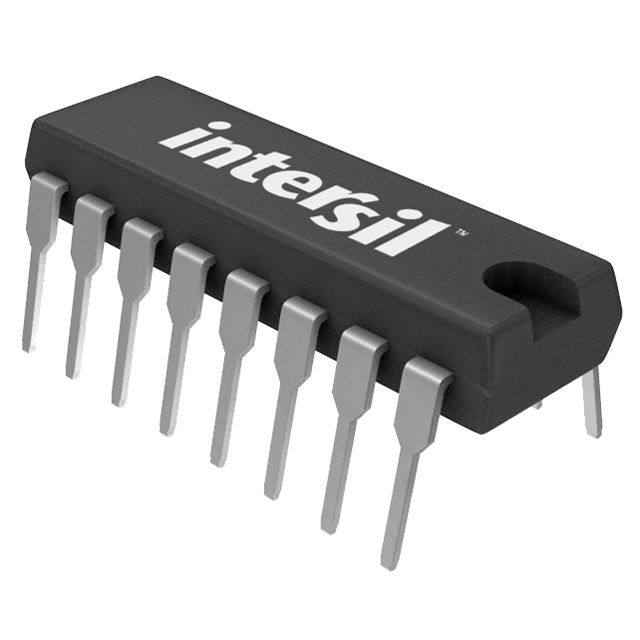

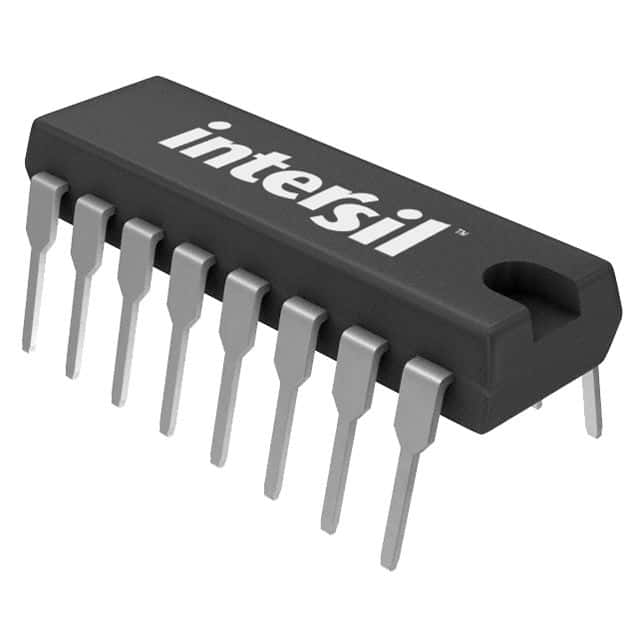

Intersil DG442DJZ technical specifications.
General
| Package/Case | PDIP |
| Drain to Source Resistance | 50R |
| Dual Supply Voltage | 18V |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 20V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 100uA |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Channels | 4 |
| On-State Resistance | 160R |
| Operating Supply Current | 15uA |
| Operating Supply Voltage | 28V |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 15uA |
| Supply Type | Single, Dual |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Intersil DG442DJZ Datasheet
Download the complete datasheet for Intersil DG442DJZ to view detailed technical specifications.
