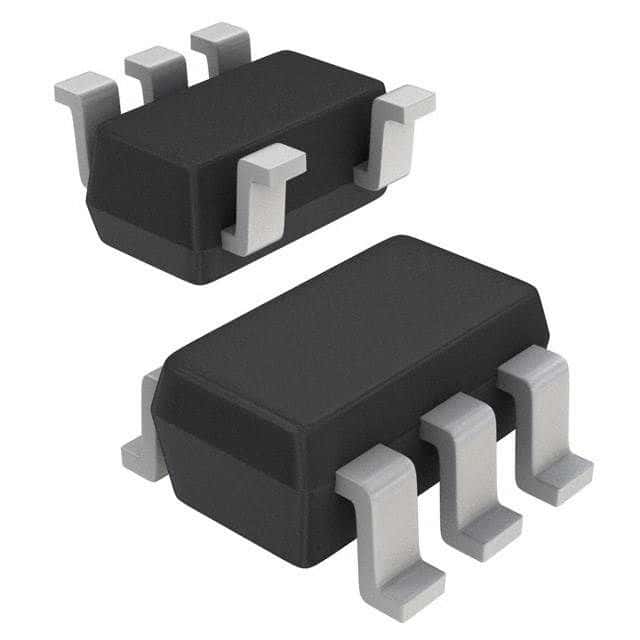

The EL5103IW-T7 is a general-purpose operational amplifier from Intersil. It features a -3db bandwidth of 400MHz and an input bias current of 2uA. The device is packaged in a SOT-23-5 case and is designed for surface mount applications. The EL5103IW-T7 operates over a temperature range of -40°C to 85°C and has an operating supply current of 5.2mA. It can supply an output current of up to 150mA per channel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intersil EL5103IW-T7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| -3db Bandwidth | 400MHz |
| Package/Case | SOT-23-5 |
| Input Bias Current | 2uA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Operating Supply Current | 5.2mA |
| Output Current per Channel | 150mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Slew Rate | 4000V/µs |
| RoHS | Not Compliant |
