High-performance, 3.5A peak output current gate driver IC in an 8-pin SOIC package. Features tristate capability and operates from a supply voltage up to 18V. Designed for a wide temperature range of -40°C to 85°C, this lead-free, RoHS compliant component ensures reliable power management in demanding applications.
PackageSOIC
Quick Jump:
Technical Specifications
Intersil EL7156CSZ-T7 technical specifications.
General
| Package/Case | SOIC |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Max Supply Voltage | 18V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Intersil EL7156CSZ-T7 Datasheet
Download the complete datasheet for Intersil EL7156CSZ-T7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

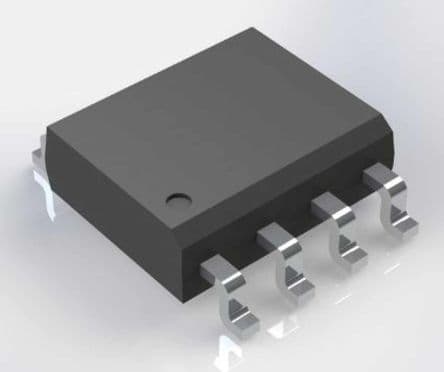

Product Images
