Quad-channel, surface-mount gate driver IC featuring a QSOP package. Delivers up to 2A maximum output current with a supply voltage range of 5V to 16.5V. Operates across a temperature range of -40°C to 85°C, with a maximum supply current of 2mA. This lead-free, RoHS-compliant component offers four outputs for efficient power management applications.
PackageQSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil EL7457CUZ-T7 technical specifications.
General
| Package/Case | QSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Supply Current | 2mA |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 5V |
| Mount | Surface Mount |
| Number of Outputs | 4 |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Intersil EL7457CUZ-T7 Datasheet
Download the complete datasheet for Intersil EL7457CUZ-T7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

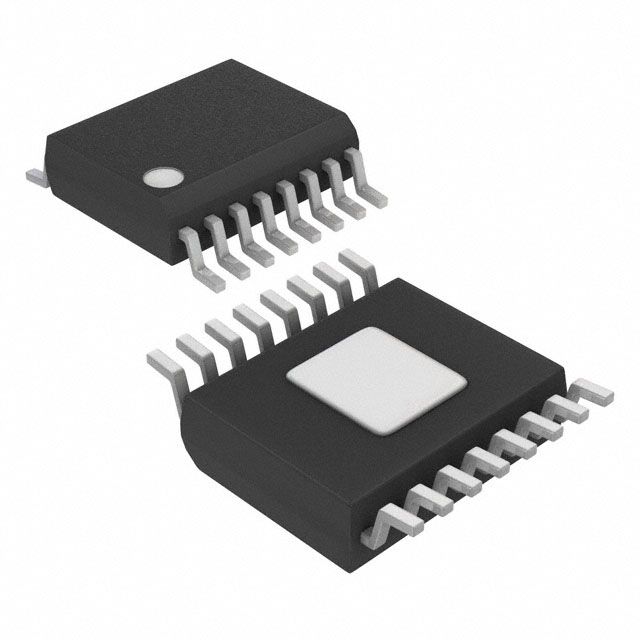

Product Images
