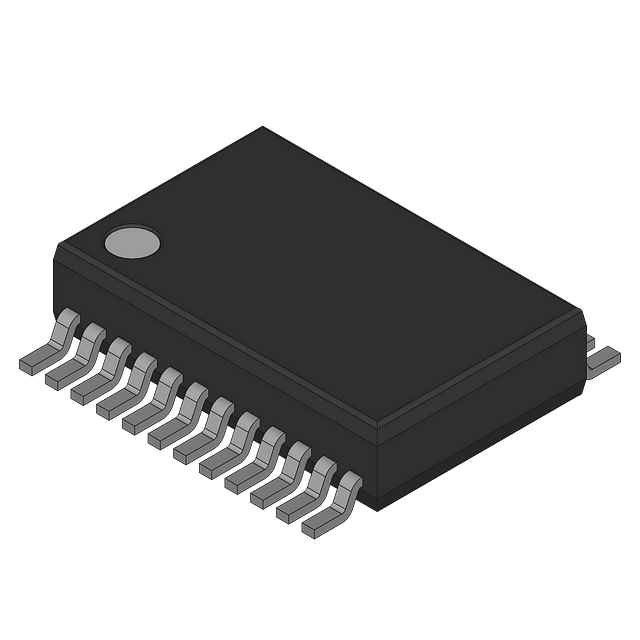

The ICL3207CA is a 3-channel bus transceiver from Intersil, packaged in a 24-pin SSOP package. It operates at a maximum temperature of 70°C and a minimum of 0°C. The device is not RoHS compliant and contains lead. It has a data rate of 500Kbps and is designed for surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intersil ICL3207CA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Data Rate | 500Kbps |
| Height | 1.85mm |
| Lead Free | Contains Lead |
| Length | 8.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Receivers | 3 |
| Number of Transceivers | 3 |
| Number of Transmitters | 5 |
| Operating Supply Voltage | 5V |
| Package Quantity | 58 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Width | 5.6mm |
| RoHS | Not Compliant |
