RS-232 transceiver with ±15kV ESD protection, operating from a +3V to +5.5V supply. Features a 500kbps data rate and low 1µA shutdown current. This surface-mount IC, housed in a TSSOP package, includes one transmitter and one receiver. It offers a wide operating temperature range from -40°C to +85°C and is RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil ICL3221EIVZ technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 500Kbps |
| Height | 0.95mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Logic Function | Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Intersil ICL3221EIVZ Datasheet
Download the complete datasheet for Intersil ICL3221EIVZ to view detailed technical specifications.
No datasheet is available for this part.

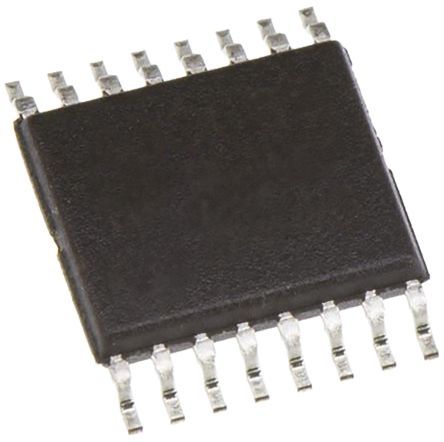

Product Images
