Intersil
ICL7106CPLZ
3 1/2 Digit, LCD/LED Display, A/D Converters; MQFP44, PDIP40; Temp Range: 0° to 70°
PackagePDIP
Current1.6mA
MountingThrough Hole
PolarityUnipolar
Quick Jump:
Technical Specifications
Intersil ICL7106CPLZ technical specifications.
General
| Package/Case | PDIP |
| Height | 4.95mm |
| Interface | Analog, Parallel |
| Lead Free | Lead Free |
| Length | 53.2mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | -5V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Channels | 4 |
| Output Voltage | 5.5V |
| Polarity | Unipolar |
| Power Consumption | 10mW |
| Power Supply | 9V |
| Reach SVHC Compliant | No |
| Resolution | 3.5b |
| RoHS Compliant | Yes |
| Sampling Rate | 3S/s |
| Supply Current | 1.6mA |
| Width | 14.73mm |
Compliance
| RoHS | Compliant |
Datasheet
Intersil ICL7106CPLZ Datasheet
Download the complete datasheet for Intersil ICL7106CPLZ to view detailed technical specifications.
No datasheet is available for this part.

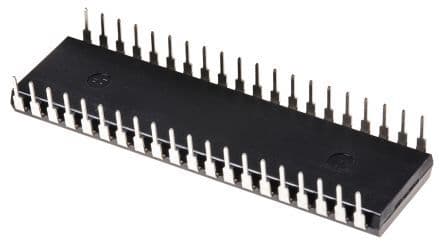

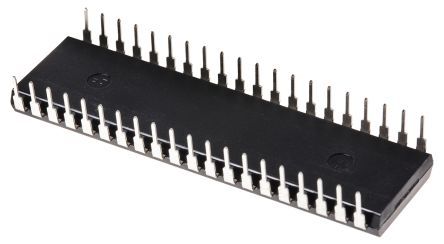

Product Images
