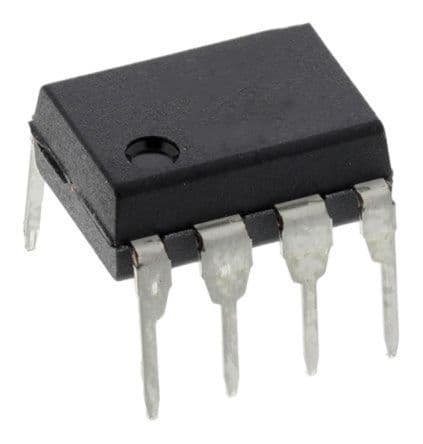

Single operational amplifier featuring a 2MHz bandwidth and 2.5V/µs slew rate. This integrated circuit offers a high voltage gain of 150dB and excellent common mode rejection and power supply rejection ratios of 140dB. It operates from a wide supply voltage range of 4.5V to 16V, with a typical operating supply current of 2mA. The component is housed in an 8-pin PDIP package suitable for through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intersil ICL7650SCPA-1Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 2MHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 140dB |
| Dual Supply Voltage | 5V |
| Gain Bandwidth Product | 2MHz |
| Height | 4.95mm |
| Input Bias Current | 4pA |
| Input Offset Voltage (Vos) | 700uV |
| Input Offset Voltage-Max | 5uV |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 15V |
| Output Current per Channel | 30mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 140dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 2.5V/µs |
| Slew Rate-Nom | 2.5V/µs |
| Supply Current | 3mA |
| Voltage Gain | 150dB |
| Width | 7.11mm |
| RoHS | Compliant |
