Technical Specifications
Intersil ICL7665SAIPAZ technical specifications.
General
| Package/Case | PDIP |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 1.325V |
| Min Reset Threshold Voltage | 1.275V |
| Max Supply Current | 10uA |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 1.8V |
| Mount | Through Hole |
| Nominal Supply Current | 2.9uA |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Threshold Voltage | 1.3V |
| Type | Voltage Detector |
| Watchdog Timer | No |
| Width | 7.11mm |
Compliance
| RoHS | Compliant |
Datasheet
Intersil ICL7665SAIPAZ Datasheet
Download the complete datasheet for Intersil ICL7665SAIPAZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

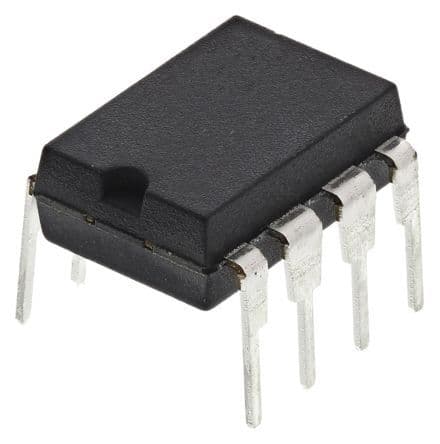

Product Images
