Technical Specifications
Intersil IS82C55AZ technical specifications.
General
| Package/Case | PLCC |
| Height | 3.69mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 400mV |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 10uA |
| Number of I/Os | 24 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 82C55A |
| Weight | 0.084185oz |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Intersil IS82C55AZ Datasheet
Download the complete datasheet for Intersil IS82C55AZ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

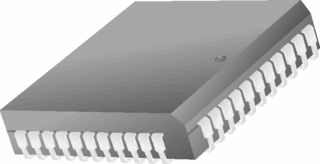

Product Images
