1.25V fixed output voltage series voltage reference IC, featuring 0.04% tolerance and a maximum output current of 7mA. Operates from a 3.5V to 18V input voltage range with a low operating supply current of 180µA. Housed in an 8-pin SOIC package, this surface mount component offers a wide operating temperature range of -40°C to 125°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil ISL21009BFB812Z technical specifications.
General
Package/Case
SOIC
Height
1.5mm
Length
5mm
Max Input Voltage
18V
Min Input Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
7mA
Min Output Voltage
1.25V
Mount
Surface Mount
Operating Supply Current
180uA
Output Current
7mA
Output Type
Fixed
Output Voltage
1.25V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
1.25V
RoHS Compliant
Yes
Series
FGA™
Tolerance
0.04%
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Intersil ISL21009BFB812Z Datasheet
Download the complete datasheet for Intersil ISL21009BFB812Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

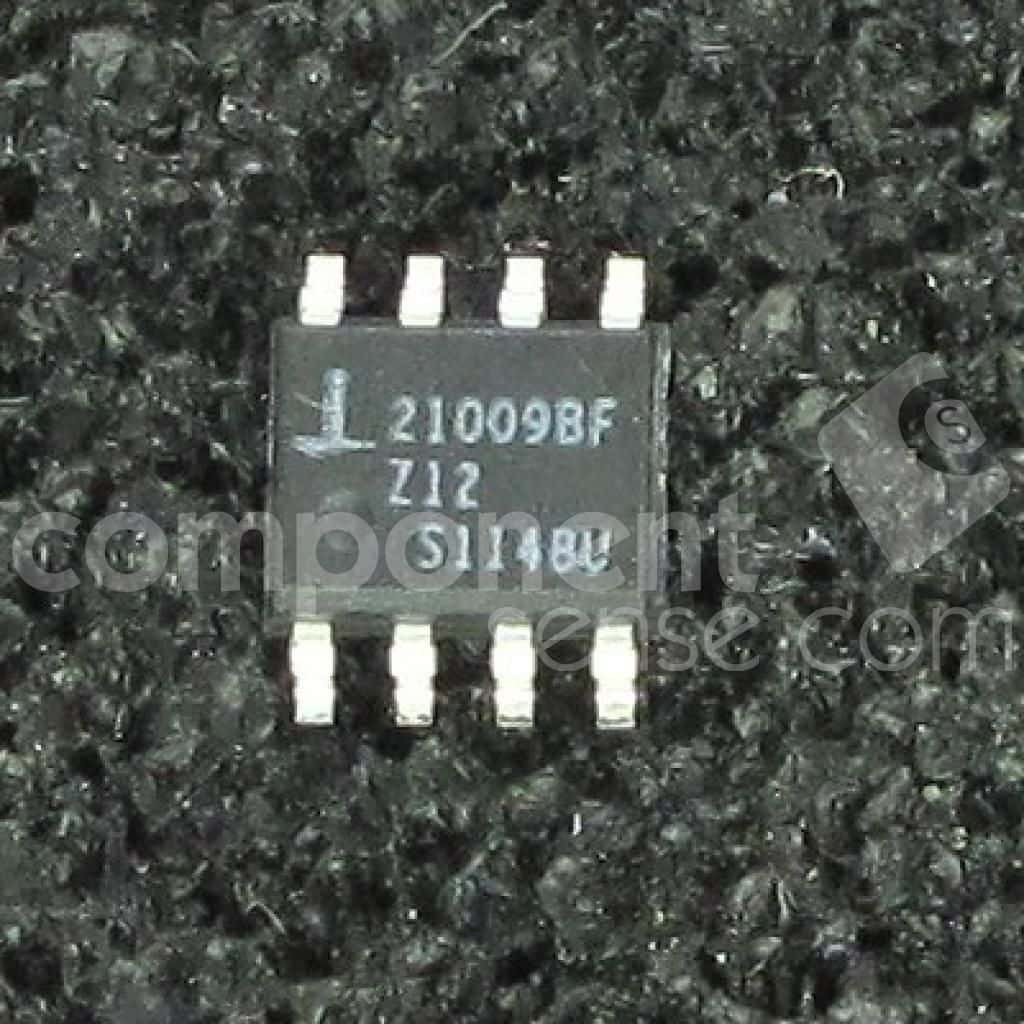

Product Images
