Intersil
ISL23428WFRUZ-T7A
Dual 128-Position Digital Potentiometer, SPI Interface, 3.3V, 1.7V-5.5V, 125°C
The ISL23428WFRUZ-T7A is a dual 128-position digital potentiometer with a SPI interface. It operates over a temperature range of -40°C to 125°C and can be supplied with a voltage between 1.7V and 5.5V. The device is surface mount and comes in a tape and reel packaging. It is RoHS compliant and has a supply current of 100uA.
Current100uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil ISL23428WFRUZ-T7A technical specifications.
General
| Interface | SPI, 4-WIRE |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Positions | 128 |
| Number of Taps | 128 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Series | XDCP™ |
| Supply Current | 100uA |
Compliance
| RoHS | Compliant |
Datasheet
Intersil ISL23428WFRUZ-T7A Datasheet
Download the complete datasheet for Intersil ISL23428WFRUZ-T7A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

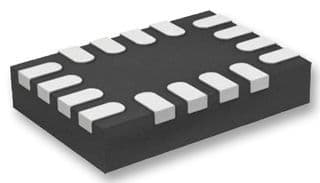

Product Images
