Dual micropower instrumentation amplifier featuring single-supply operation and rail-to-rail input and output. Offers a 15MHz bandwidth with a -3dB bandwidth of 180kHz. Achieves 80dB common mode rejection ratio and 80dB power supply rejection ratio. Operates from a 2.4V to 5.5V supply with a typical 120µA quiescent current. Housed in a QSOP package with a temperature range of -40°C to 125°C.
PackageQSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil ISL28271FAZ technical specifications.
General
-3db Bandwidth
180kHz
Bandwidth
15MHz
Package/Case
QSOP
Common Mode Rejection Ratio
80dB
Height
1.4mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
600uV
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Operating Supply Current
120uA
Operating Supply Voltage
3V
Output Current per Channel
31mA
Package Quantity
97
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Type
Single
Weight
0.010159oz
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Intersil ISL28271FAZ Datasheet
Download the complete datasheet for Intersil ISL28271FAZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

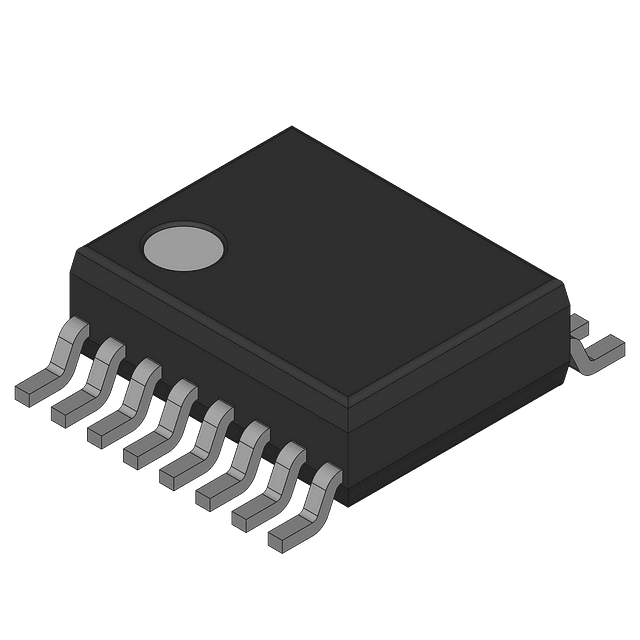

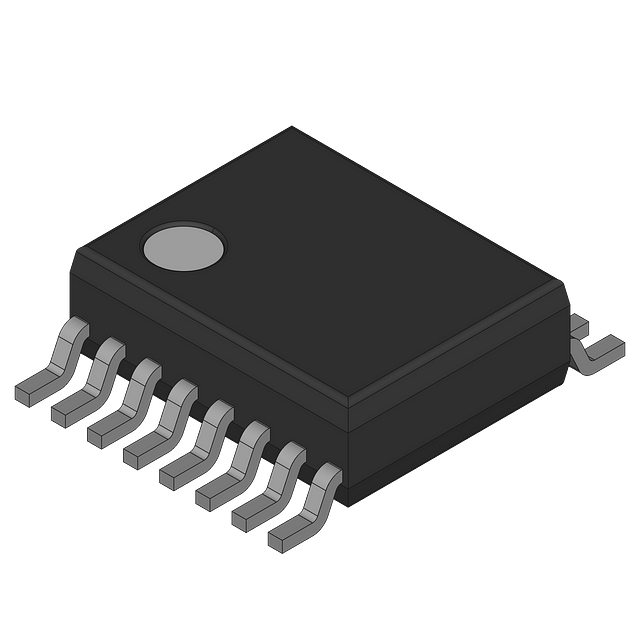

Product Images
