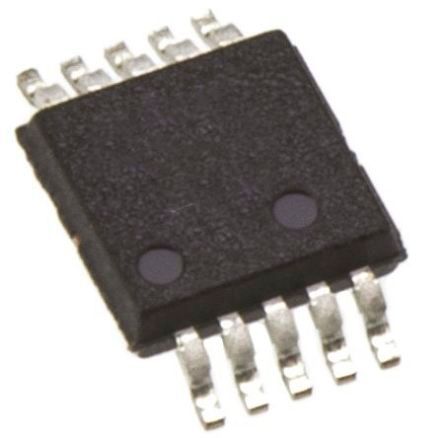

The ISL54220IUZ-T is a dual interface IC with a bandwidth of 742MHz and a data rate of 480Mbps. It is available in a surface mount MSOP package with dimensions of 0.95mm height, 3.05mm length, and 3.05mm width. The IC operates within a temperature range of -40°C to 85°C and is powered by a single supply voltage of 5V. The device is RoHS compliant and available in quantities of 2500 per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intersil ISL54220IUZ-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Intersil ISL54220IUZ-T technical specifications.
| Bandwidth | 742MHz |
| Package/Case | MSOP |
| Data Rate | 480Mbps |
| Height | 0.95mm |
| Length | 3.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 30nA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| On-State Resistance | 8R |
| Operating Supply Current | 9nA |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Weight | 0.005051oz |
| Width | 3.05mm |
| RoHS | Compliant |
