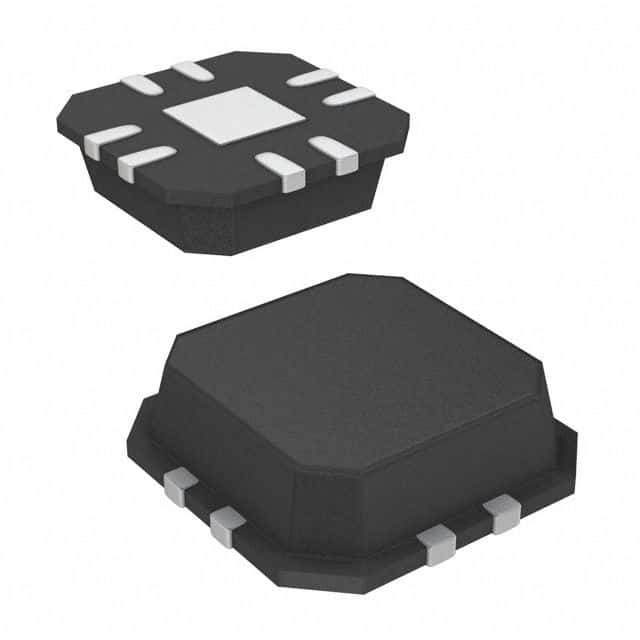

The ISL6207CRZ-T is a dual gate driver from Intersil, packaged in a VQFN case and designed for surface mount. It operates within a temperature range of -10°C to 85°C and is powered by a supply voltage between 4.5V and 5.5V. This device features a high output current of 4A and is available in a tape and reel packaging format with 6000 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intersil ISL6207CRZ-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Intersil ISL6207CRZ-T technical specifications.
| Package/Case | VQFN |
| Fall Time | 8ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 4A |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Intersil ISL6207CRZ-T to view detailed technical specifications.
