Low noise LDO voltage regulator, 3.3V fixed output voltage with 0.8% accuracy. Features a 150mA maximum output current and a low dropout voltage of 200mV. Operates with an input voltage range of 2.3V to 6.5V and offers a high Power Supply Rejection Ratio (PSRR) of 90dB. This positive polarity, single-output regulator is housed in a compact 5-pin SC package, suitable for surface mounting.
PackageSC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Intersil ISL9003AIENZ-T technical specifications.
General
| Accuracy | 0.8% |
| Package/Case | SC |
| Dropout Voltage | 200mV |
| Height | 1mm |
| Length | 2.15mm |
| Min Current Limit | 175mA |
| Max Input Voltage | 6.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| Quiescent Current | 29uA |
| Reference Voltage | 1V |
| RoHS Compliant | Yes |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Intersil ISL9003AIENZ-T Datasheet
Download the complete datasheet for Intersil ISL9003AIENZ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

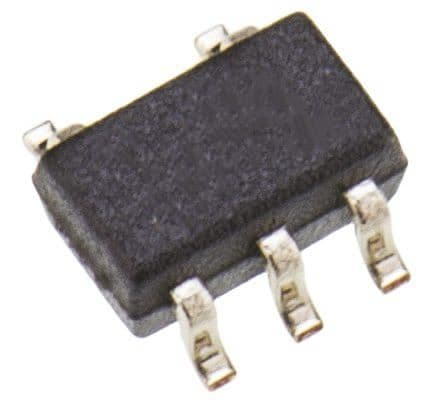

Product Images
