Technical Specifications

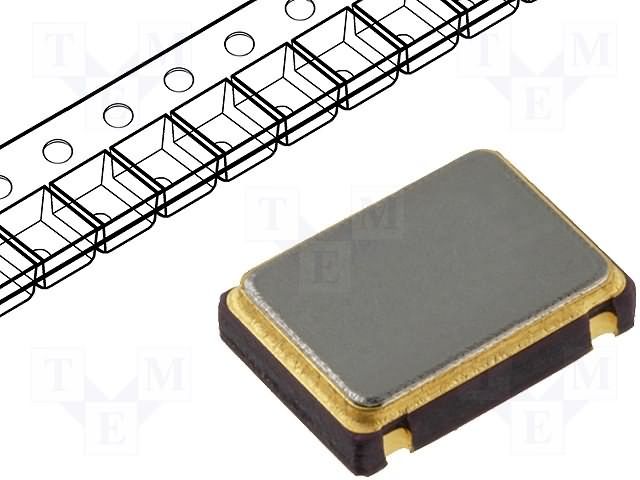

IQD LFSPXO019079 technical specifications.
General
| Accuracy | 50ppm |
| Package/Case | SMD/SMT |
| Frequency | 8MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 50ppm |
| Load Capacitance | 50pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 20mA |
| Operating Supply Voltage | 5V |
| Reach SVHC Compliant | No |
| Series | CFPS |
| Size | 1.4mm |
| Supply Current | 20mA |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFSPXO019079 Datasheet
Download the complete datasheet for IQD LFSPXO019079 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
