This 3.579545MHz quartz crystal features an accuracy of 30ppm and a frequency stability of 50ppm. It has a load capacitance of 20pF and a series resistance of 300R. The crystal is designed for through hole mount and has dimensions of 4mm x 4.7mm. It operates within a temperature range of -20°C to 70°C.
Frequency3.579545MHz
Storage4mm
MountingThrough Hole
Quick Jump:
Technical Specifications
IQD LFXTAL003063 technical specifications.
General
| Accuracy | 30ppm |
| Frequency | 3.579545MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 4mm |
| Length | 11.05mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Series | HC49/4H |
| Series Resistance | 300R |
| Size | 4mm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL003063 Datasheet
Download the complete datasheet for IQD LFXTAL003063 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

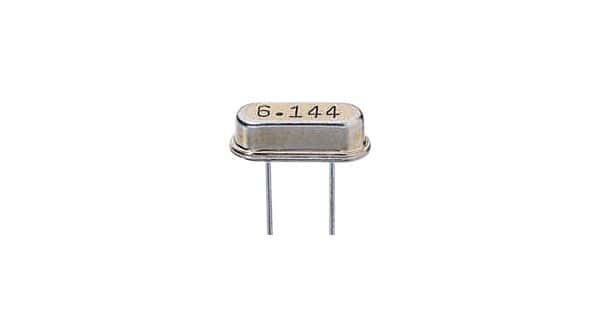

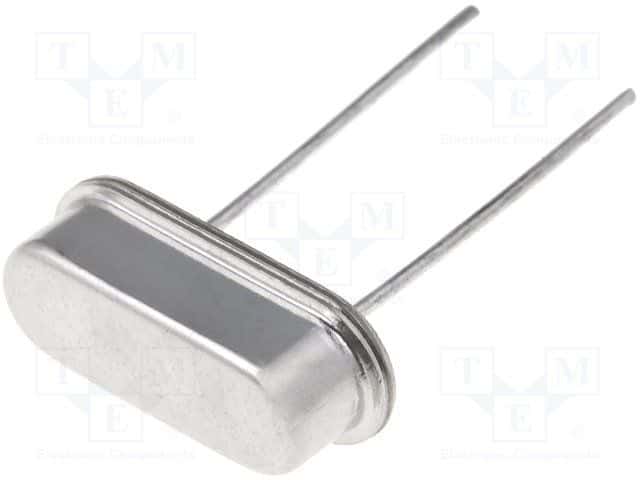

Product Images
