The LFXTAL003132 is a 6MHz crystal with a frequency stability of 50ppm and a frequency tolerance of 30ppm. It has a series resistance of 80R and a load capacitance of 30pF. The crystal is available in a through-hole package with dimensions of 4mm in height, 11.05mm in length, and 4.7mm in width. Operating temperature range is between -10°C and 60°C.
Frequency6MHz
Storage4mm
MountingThrough Hole
Quick Jump:
Technical Specifications
IQD LFXTAL003132 technical specifications.
General
| Frequency | 6MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 4mm |
| Length | 11.05mm |
| Load Capacitance | 30pF |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Series | HC49/4H |
| Series Resistance | 80R |
| Size | 4mm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL003132 Datasheet
Download the complete datasheet for IQD LFXTAL003132 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

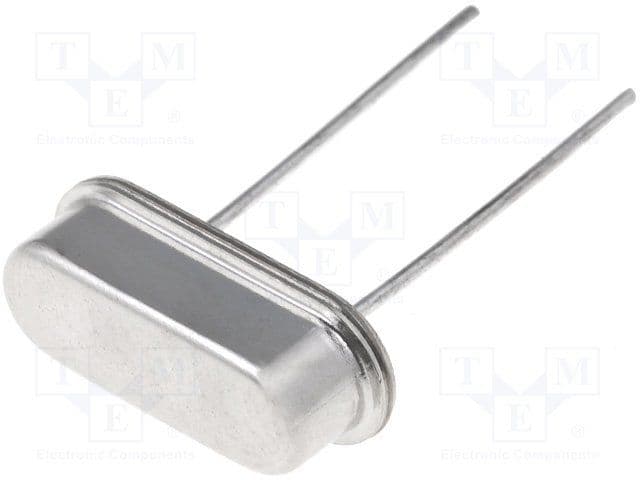

Product Images
