Frequency8MHz
Storage4.5mm
MountingThrough Hole
Quick Jump:
Technical Specifications
IQD LFXTAL003147 technical specifications.
General
Accuracy
100ppm
Depth
4.65mm
ESR (Equivalent Series Resistance)
50R
Frequency
8MHz
Frequency Stability
50ppm
Frequency Tolerance
20ppm
Length
11.05mm
Load Capacitance
30pF
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Mount
Through Hole
Packaging
Bulk
Reach SVHC Compliant
No
Series
HC49
Series Resistance
50R
Size
4.5mm
Compliance
RoHS
Compliant
Datasheet
IQD LFXTAL003147 Datasheet
Download the complete datasheet for IQD LFXTAL003147 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

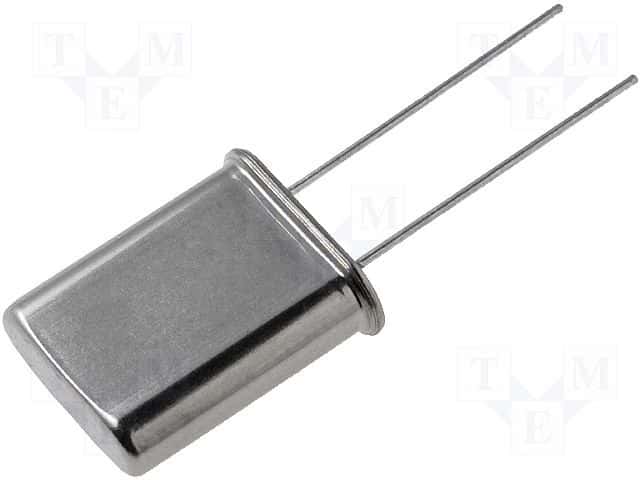

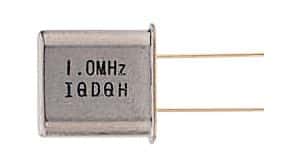

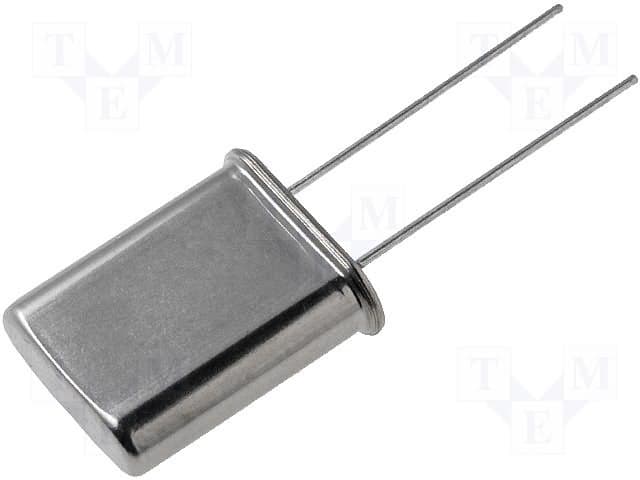

Product Images
