The LFXTAL003156 is an 8MHz crystal oscillator with a frequency stability of 50ppm and a frequency tolerance of 30ppm. It has a height of 4mm and a length of 11.05mm. The oscillator is designed for through hole mount and has a load capacitance of 30pF. It operates within a temperature range of -20°C to 70°C and is compliant with RoHS regulations.
Frequency8MHz
Storage4mm
MountingThrough Hole
Quick Jump:
Technical Specifications
IQD LFXTAL003156 technical specifications.
General
| Frequency | 8MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 4mm |
| Length | 11.05mm |
| Load Capacitance | 30pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HC49/4H |
| Series Resistance | 80R |
| Size | 4mm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL003156 Datasheet
Download the complete datasheet for IQD LFXTAL003156 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

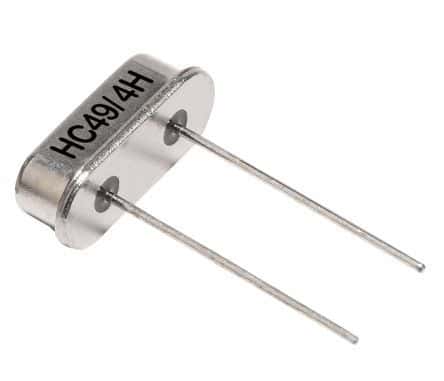

Product Images
