Technical Specifications
IQD LFXTAL003215 technical specifications.
General
| Frequency | 12MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 4mm |
| Length | 11.05mm |
| Load Capacitance | 30pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Series | HC49/4H |
| Series Resistance | 60R |
| Size | 4mm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL003215 Datasheet
Download the complete datasheet for IQD LFXTAL003215 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

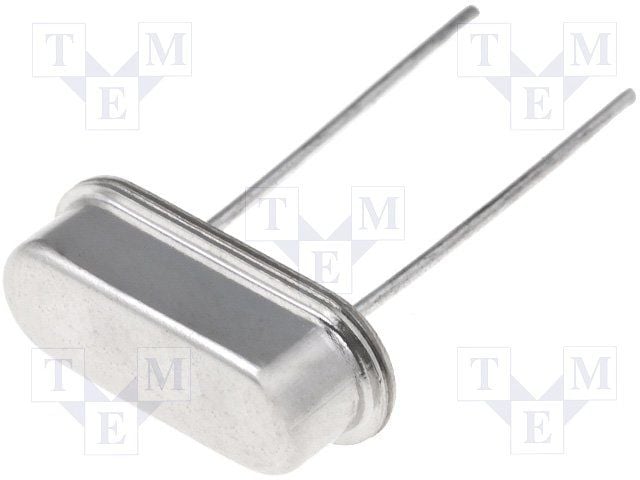

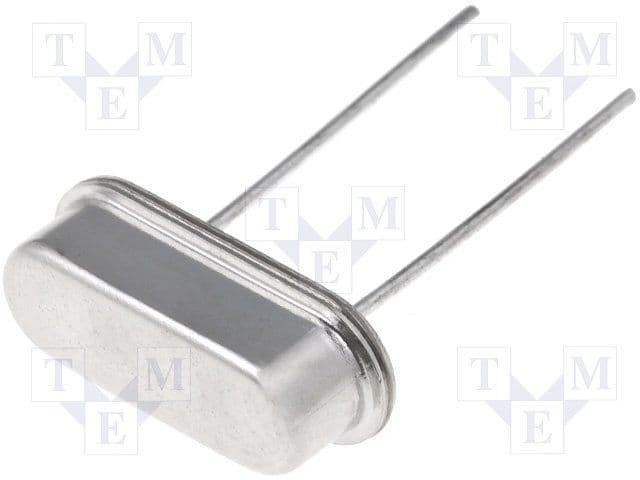

Product Images
