The LFXTAL003257 is a 3.6864MHz crystal oscillator with a frequency stability of 50ppm and a frequency tolerance of 20ppm. It has a height of 13.46mm and a length of 11.05mm. The crystal is designed for through-hole mounting and has a series resistance of 150R. It operates within a temperature range of -10°C to 60°C and is not Reach SVHC compliant. The crystal is part of the HC49 series and has a load capacitance of 30pF.
Frequency3.6864MHz
Storage4.5mm
MountingThrough Hole
Quick Jump:
Technical Specifications
IQD LFXTAL003257 technical specifications.
General
| Frequency | 3.6864MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 20ppm |
| Height | 13.46mm |
| Length | 11.05mm |
| Load Capacitance | 30pF |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Series | HC49 |
| Series Resistance | 150R |
| Size | 4.5mm |
| Width | 4.65mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL003257 Datasheet
Download the complete datasheet for IQD LFXTAL003257 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

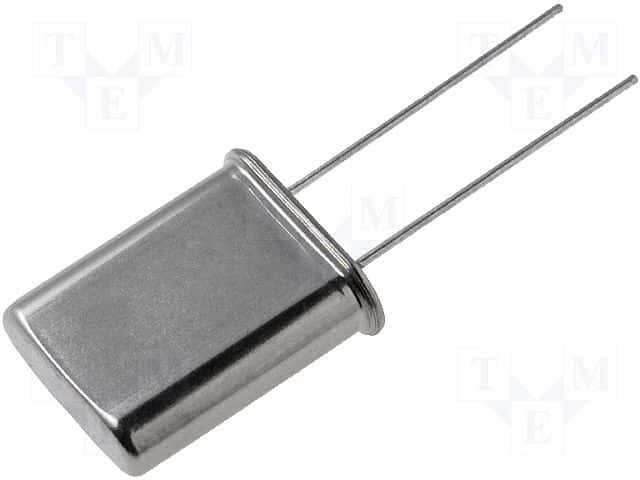

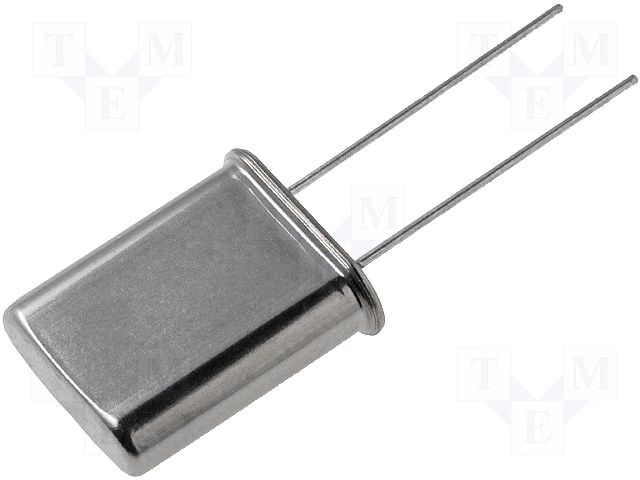

Product Images
