![Quartz [IQD] LF XTAL003263 Quartz](https://static.datasheets.com/image/22790249-iqd-lfxtal003263-image.jpg)
Quick Jump:
Technical Specifications
IQD LFXTAL003263 technical specifications.
General
| Frequency | 3.6864MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 4mm |
| Length | 11.05mm |
| Load Capacitance | 30pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Series | HC49/4H |
| Series Resistance | 300R |
| Size | 4mm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL003263 Datasheet
Download the complete datasheet for IQD LFXTAL003263 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

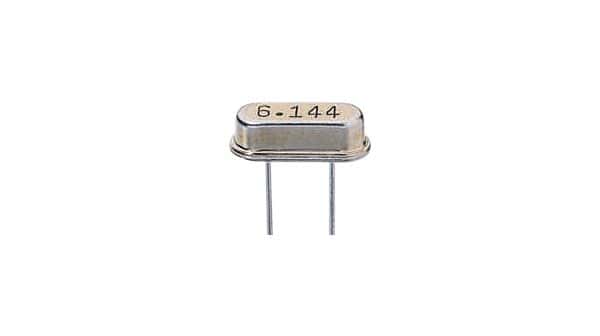

Product Images
