The LFXTAL003515 is a 11.0592MHz crystal with a frequency stability of 30ppm and a frequency tolerance of 20ppm. It has a load capacitance of 20pF and is designed for through hole mounting. The crystal operates within a temperature range of -10°C to 60°C. It is part of the HC49 series with a series resistance of 35R and a size of 4.5mm.
Frequency11.0592MHz
Storage4.5mm
MountingThrough Hole
Quick Jump:
Technical Specifications
IQD LFXTAL003515 technical specifications.
General
| Frequency | 11.0592MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 20ppm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Series | HC49 |
| Series Resistance | 35R |
| Size | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL003515 Datasheet
Download the complete datasheet for IQD LFXTAL003515 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

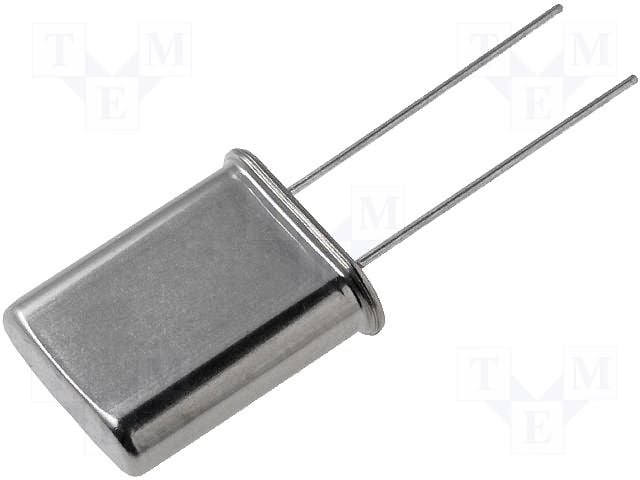

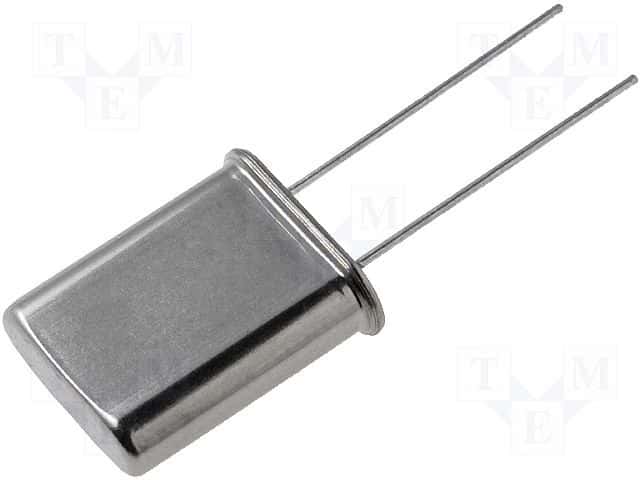

Product Images
