The LFXTAL012313 is a surface mount crystal with a frequency of 14.746MHz, a frequency stability of 50ppm, and a frequency tolerance of 30ppm. It has a height of 4mm and a length of 11.05mm. The crystal has a load capacitance of 30pF and operates within a temperature range of -10°C to 60°C. The LFXTAL012313 is RoHS compliant and is part of the HC49/4H SMX series.
Frequency14.746MHz
Storage4.3mm
MountingSurface Mount
Quick Jump:
Technical Specifications
IQD LFXTAL012313 technical specifications.
General
| Frequency | 14.746MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 4mm |
| Length | 11.05mm |
| Load Capacitance | 30pF |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HC49/4H SMX |
| Series Resistance | 40R |
| Size | 4.3mm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL012313 Datasheet
Download the complete datasheet for IQD LFXTAL012313 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

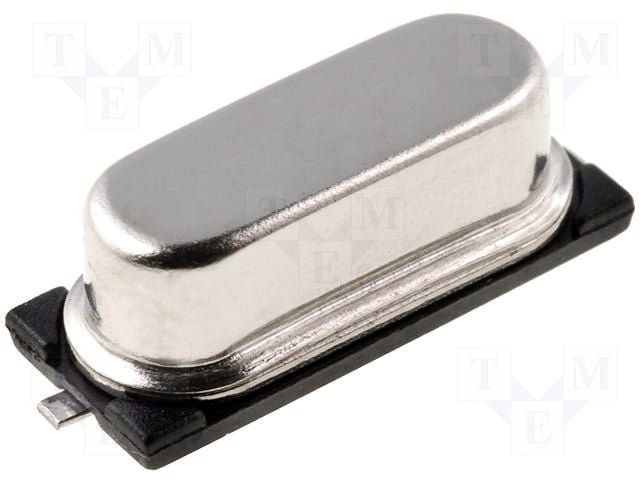

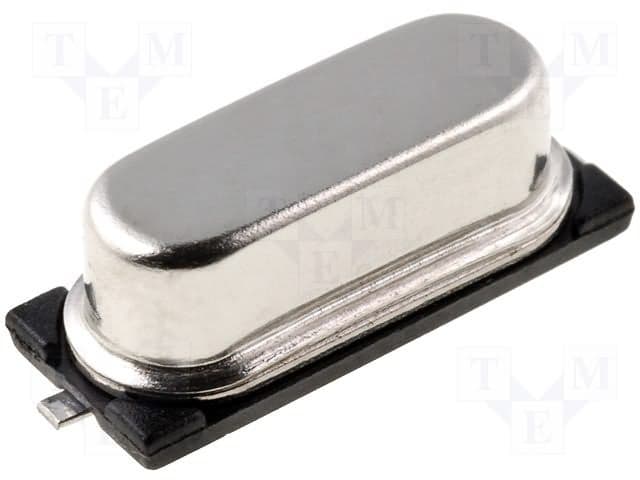

Product Images
