The IQD LFXTAL026388 is a 14.746MHz SMD crystal oscillator with a frequency stability of 50ppm and a frequency tolerance of 30ppm. It has a maximum operating temperature of 70°C and a minimum operating temperature of -20°C. The oscillator is packaged in a surface mount package with dimensions of 1.4mm in height, 7.5mm in length, and 5.2mm in width. It has a load capacitance of 16pF and a series resistance of 60R.
Frequency14.746MHz
PackageSMD/SMT
Storage1.4mm
MountingSurface Mount
Quick Jump:
Technical Specifications
IQD LFXTAL026388 technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 14.746MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 1.4mm |
| Length | 7.5mm |
| Load Capacitance | 16pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Reach SVHC Compliant | No |
| Series | 12SMX |
| Series Resistance | 60R |
| Size | 1.4mm |
| Width | 5.2mm |
Compliance
| RoHS | Compliant |
Datasheet
IQD LFXTAL026388 Datasheet
Download the complete datasheet for IQD LFXTAL026388 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

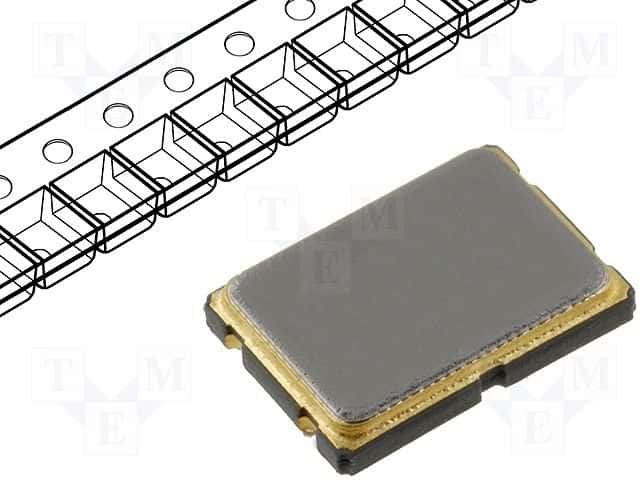

Product Images
