The IS31BL3506A-TTLS2-TR is a surface-mount LED driver IC with analog and PWM dimming capabilities. It operates at a frequency of 1MHz and can supply up to 2.2A of current per channel. This device is packaged in a SOT-23-6 case and is RoHS compliant. The IS31BL3506A-TTLS2-TR is suitable for use in applications where a high level of brightness control is required, and it can withstand operating temperatures ranging from -40°C to 85°C.
Frequency1MHz
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Issi IS31BL3506A-TTLS2-TR technical specifications.
General
| Package/Case | SOT-23-6 |
| Dimming | Analog, PWM |
| Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 9 |
| Output Current per Channel | 2.2A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS31BL3506A-TTLS2-TR Datasheet
Download the complete datasheet for Issi IS31BL3506A-TTLS2-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

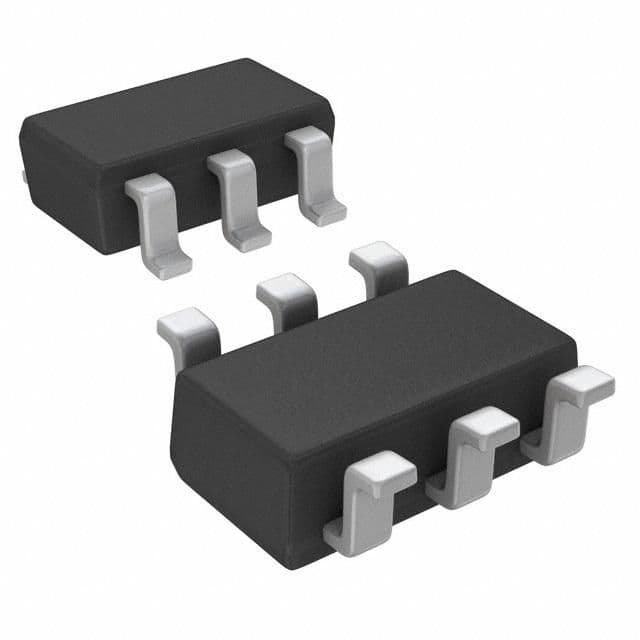

Product Images
