128Mb SDRAM chip, 8Mx16 organization, offering 16-bit parallel interface with a maximum frequency of 143MHz and a 5.4ns access time. This surface mount TSOP-II packaged component operates at 3.3V, with a voltage range of 3V to 3.6V. It features a 14-bit address bus and is RoHS compliant, suitable for operation between -40°C and 85°C.
Frequency143MHz
PackageTSOP
Current100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Issi IS42S16800F-7TLI technical specifications.
General
| Access Time | 5.4ns |
| Access Time-Max | 5.4ns |
| Address Bus Width | 14b |
| Package/Case | TSOP |
| Data Bus Width | 16b |
| Density | 128Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 143MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128Mb |
| Memory Type | RAM, , SDRAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 8MX16 |
| Package Quantity | 108 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 100mA |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS42S16800F-7TLI Datasheet
Download the complete datasheet for Issi IS42S16800F-7TLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

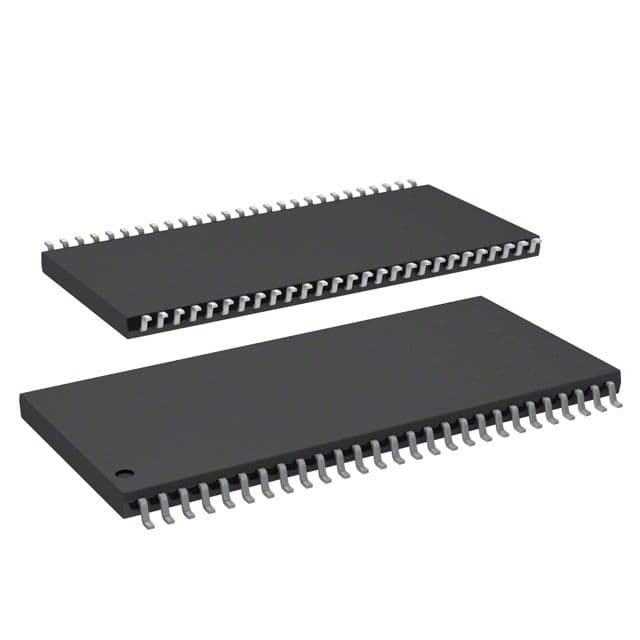

Product Images
